Concept on Disk

Block Manager:

https://source.wiredtiger.com/11.3.1/arch-block.html

  • A block is a chunk of data that is stored on the disk and operated on as a single unit.
  • Each WiredTiger data file (any file in the home directory with the .wt suffix) is made up of these blocks.
  • Each block consists of a page header, a block header and contains a single page of the btree from which it was generated.
  • WiredTiger is a no-overwrite storage engine, and when blocks are re-written, they are written to new locations in the file.

Descriptor blocks:

  • A file is divided up into blocks. The first block in a file is special as it contains metadata about the file and is referred to as the “descriptor block”. It contains the WiredTiger major and minor version, a checksum of the block contents as well as a “magic” number to check against.

Data File Format:

https://source.wiredtiger.com/11.3.1/arch-data-file.html

Btree <—-> Table 1 : 1

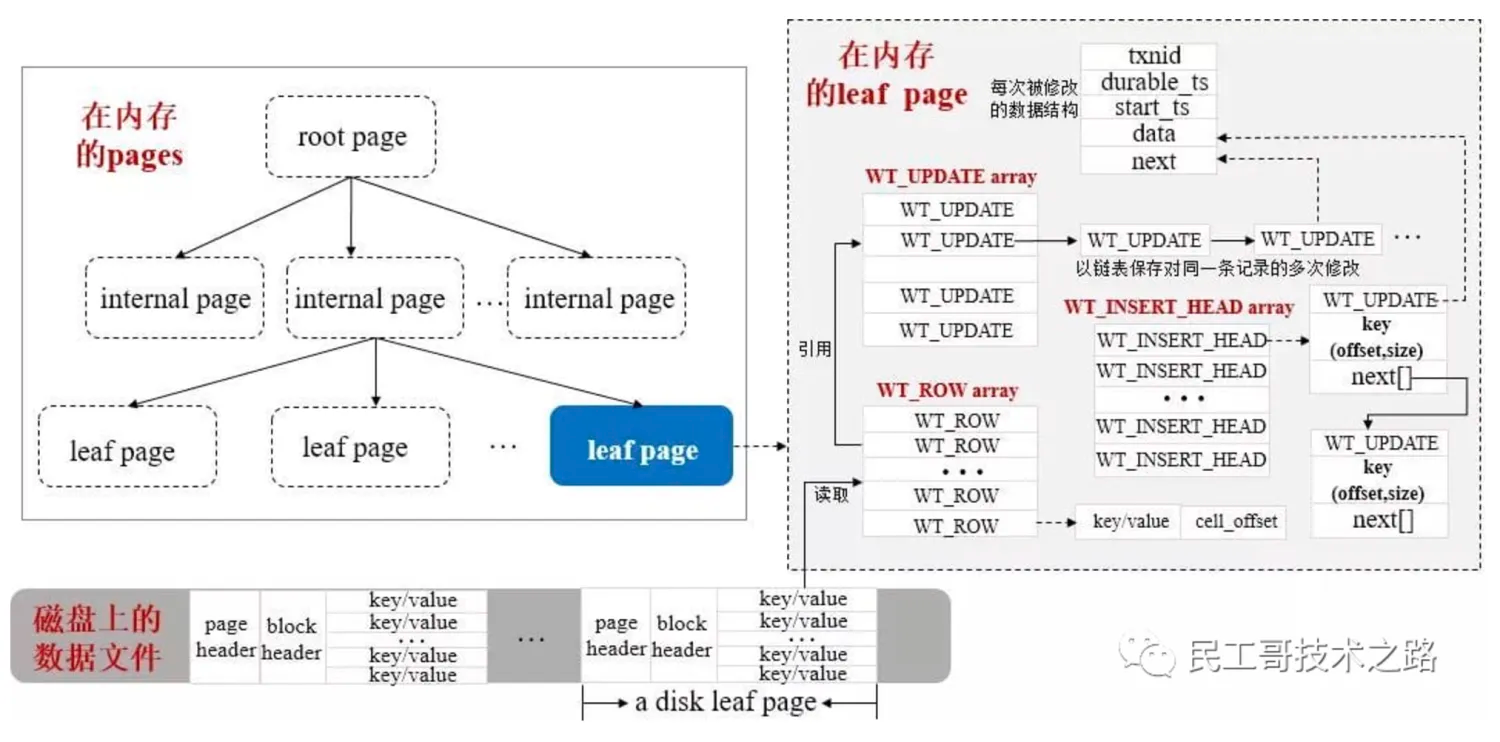

  • In memory, a database table is represented by a B-Tree data structure, which is made up of nodes that are page structures.
  • The root and internal pages will only store keys and references to other pages, while leaf pages store keys, values and sometimes references to overflow pages.

Block <—-> Page 1 : 1

  • When these pages are written onto the disk, they are written out as units of data called blocks.
  • On the disk, a WiredTiger data file is just a collection of blocks which logically represent the pages of the B-Tree.

Data File — Block — Page on Disk

  • Each WiredTiger data file (any file in the home directory with the .wt suffix) is made up of these blocks.
  • On the disk, a WiredTiger data file is just a collection of blocks which logically represent the pages of the B-Tree.
  • The layout of a .wt file consists of a file description WT_BLOCK_DESC which always occupies the first block, followed by a set of on-disk pages.

Page on Disk

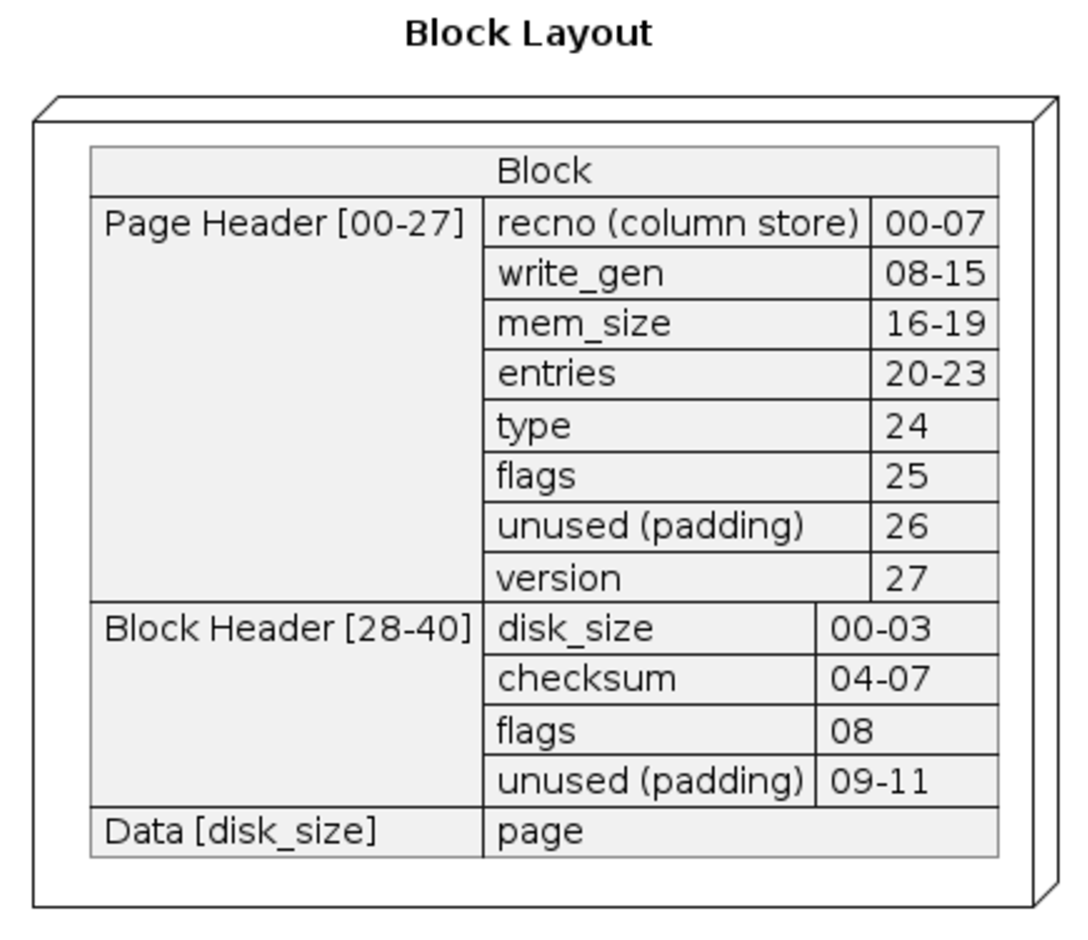

  • Pages consist of a header (WT_PAGE_HEADER and WT_BLOCK_HEADER) followed by a variable number of cells, which encode keys, values or addresses (see cell.h).

Checkpoint:

  • At the block manager level, a checkpoint corresponds with a set of blocks that are stored in the file associated with the given URI.
  • There are three extent lists that are maintained per checkpoint:
    • alloc: The file ranges allocated for a given checkpoint.
    • avail: The file ranges that are unused and available for allocation.
    • discard: The file ranges freed in the current checkpoint.
    • The alloc and discard extent lists are maintained as a skiplist sorted by file offset. The avail extent list also maintains an extra skiplist sorted by the extent size to aid with allocating new blocks.
  • Each extent uses a file offset and size to track a portion of the file.

Concept in Memory

 1
 2
 3
 4
 5
 6
 7
 8
 9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54

struct __wt_btree {
    WT_REF root;                /* Root page reference */

    WT_BM *bm;          /* Block manager reference */
};

struct __wt_ref {
    wt_shared WT_PAGE *page; /* Page */

    /*
     * Address: on-page cell if read from backing block, off-page WT_ADDR if instantiated in-memory,
     * or NULL if page created in-memory.
     */
    wt_shared void *addr;
}

/* Block manager handle, references a single checkpoint in a btree. */
struct __wt_bm {
    WT_BLOCK *block;
}

struct __wt_block {
    WT_FH *fh;            /* Backing file handle */
    wt_off_t size;        /* File size */

    WT_BLOCK_CKPT live;    /* Live checkpoint */
}

struct __wt_connection_impl {
    /* Block objects can be shared (although there can be only one writer). */
    WT_SPINLOCK block_lock; /* Locked: block manager list */
    TAILQ_HEAD(__wt_blockhash, __wt_block) * blockhash;
    TAILQ_HEAD(__wt_block_qh, __wt_block) blockqh;

    WT_BLKCACHE blkcache;     /* Block cache */
    WT_CHUNKCACHE chunkcache; /* Chunk cache */

    WT_CACHE *cache;                        /* Page cache */
    wt_shared volatile uint64_t cache_size; /* Cache size (either statically configured or the current size within a cache pool). */
}

struct __wt_page {
    /* Internal pages */
    wt_shared WT_PAGE_INDEX *volatile __index; /* Collated children */

    /* Row-store leaf page. */
    WT_ROW *row;  /* Key/value pairs */

    /* Page's on-disk representation: NULL for pages created in memory. */
    const WT_PAGE_HEADER *dsk;

    /* If/when the page is modified, we need lots more information. */
    wt_shared WT_PAGE_MODIFY *modify;
}

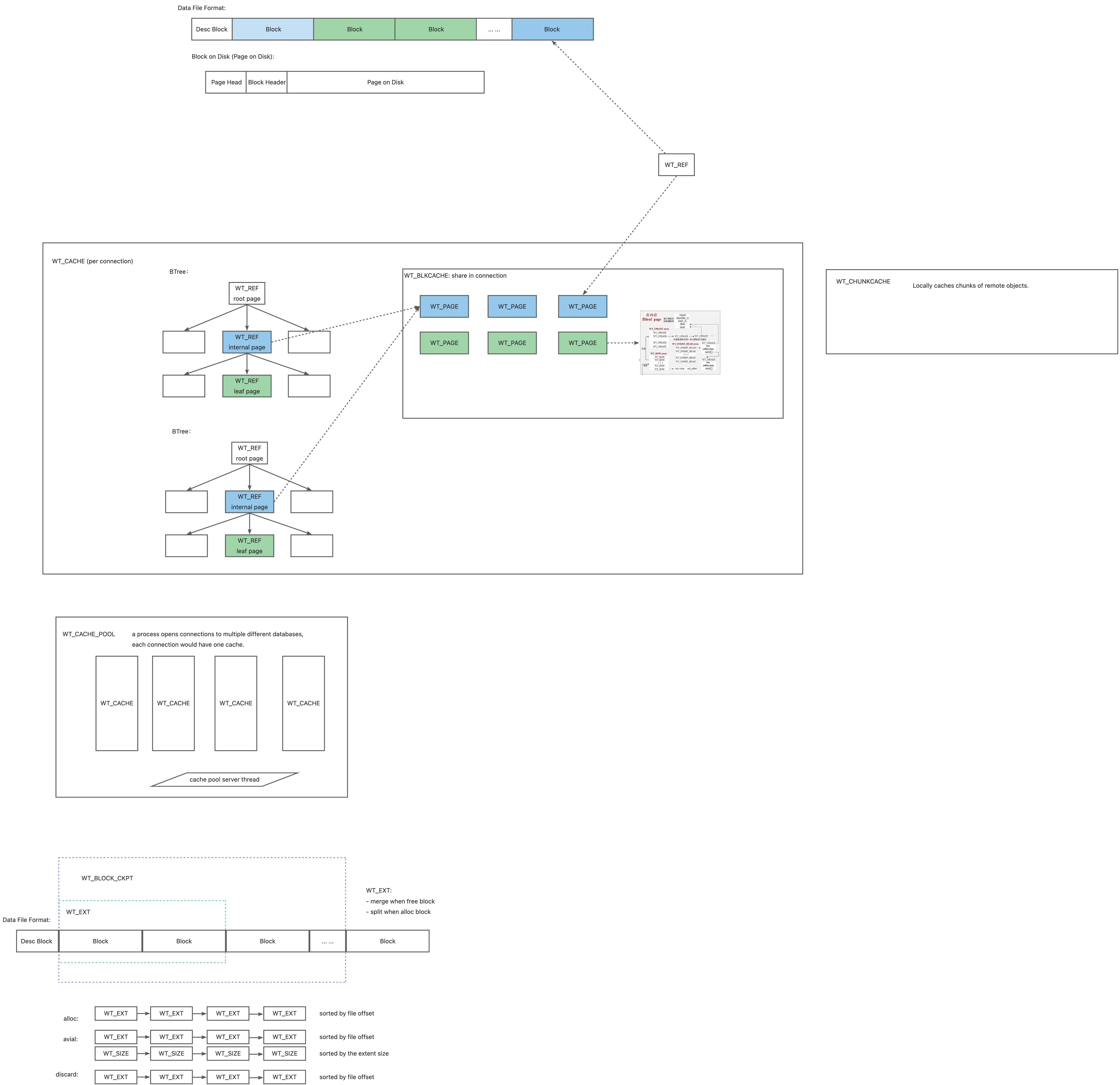

Summary

Flow

1
2
3
4
5
6
7

int __wt_btree_open(WT_SESSION_IMPL *session, const char *op_cfg[]) {}

static int __page_read(WT_SESSION_IMPL *session, WT_REF *ref, uint32_t flags) {}

static int __bm_write(WT_BM *bm, WT_SESSION_IMPL *session, WT_ITEM *buf,
                      uint8_t *addr, size_t *addr_sizep,
                      bool data_checksum, bool checkpoint_io) {}
